UNI-CAT-ACH
- Handles labels up to 155mm wide
- Roll diameter capacity up to 280mm
- Adjustable core holder from 25 to 101mm
- Speed up to 80cm/s
- Max roll weight 7 kg

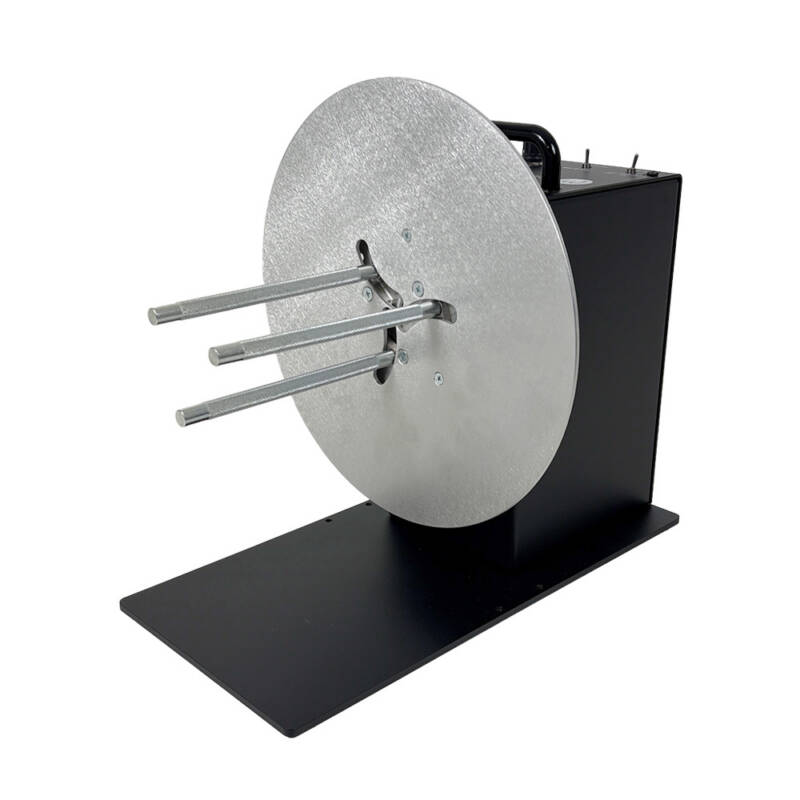

CAT-3-ACH
CAT-3-ACH
Features
- Handles labels up to 155mm wide
- Roll diameter capacity up to 280mm
- Adjustable core holder from 25 to 101mm
- Speed up to 125cm/sec
Description
The CAT-3-ACH handles labels up to 155 mm wide and will wind a roll of labels up to a 280 mm diameter. This unit includes an Adjustable Core Holder (ACH) that accepts any core size from 25mm to 101mm. Torque and Direction are fully controllable from the Control Panel. Dual torque ranges provide plenty of power for use with a LABELMATE Slitter, too.
Rugged, heavy-gauge steel construction allows your CAT-3 Rewinder to be simply set in place. Special anti-slip feet keep the unit from moving.
Reliable, high quality and maintenance-free, the Heavy-Duty CAT Label Rewinder features a 5-YEAR PARTS and LABOUR LIMITED WARRANTY (1-Year on power supplies), the longest in the industry.
Power supply :
Input: 100-240VAC, 50Hz ; Output: 15VDC-4.33A
P/N: LMR005
Videos
HEAVY-DUTY-CAT-3-REWINDERS
CAT-3-ACH-DRAWING
