UNI-CAT-CHUCK-R16

UNI-CAT-CHUCK-R16

UNI-CAT-CHUCK-R16

Features

  • Handles labels up to 170mm
  • Roll diameter capacity up to 400mm
  • For cores in 76mm diameter
  • Speed up to 80cm/s
  • Max roll weight 10 KG

Description

The new UNI-CAT is the smartest and most “UNI-VERSATILE” rewinder/unwinder in the Labelmate product range ! With various core sizes, label widths, roll diameters and options to choose from, there is a rewinder/unwinder to fit any job you may have. The new UNI-CAT is the perfect companion for any colour-inkjet-printer and all industrial thermal transfer printers. The most important features are:

  • Self-teaching to work as rewinder or unwinder
  • Supports back-feed process for colour inkjet & tension sensitive printers
  • Auto-Speed Adjustment to align with printer speed
  • Speed up to 125cm/sec to work with the fastest barcode printers available
  • Bi-Directional for internal & external winding
  • New maintenance free, soft-touch control panel with LED-Status-Indicators
  • Standard with paper guide for straight and tight label rolls, no flanges needed
  • CHUCK model comes with the Quick-Locking-Chuck in 76mm  x 170mm as standard (different diameters/lengths available)

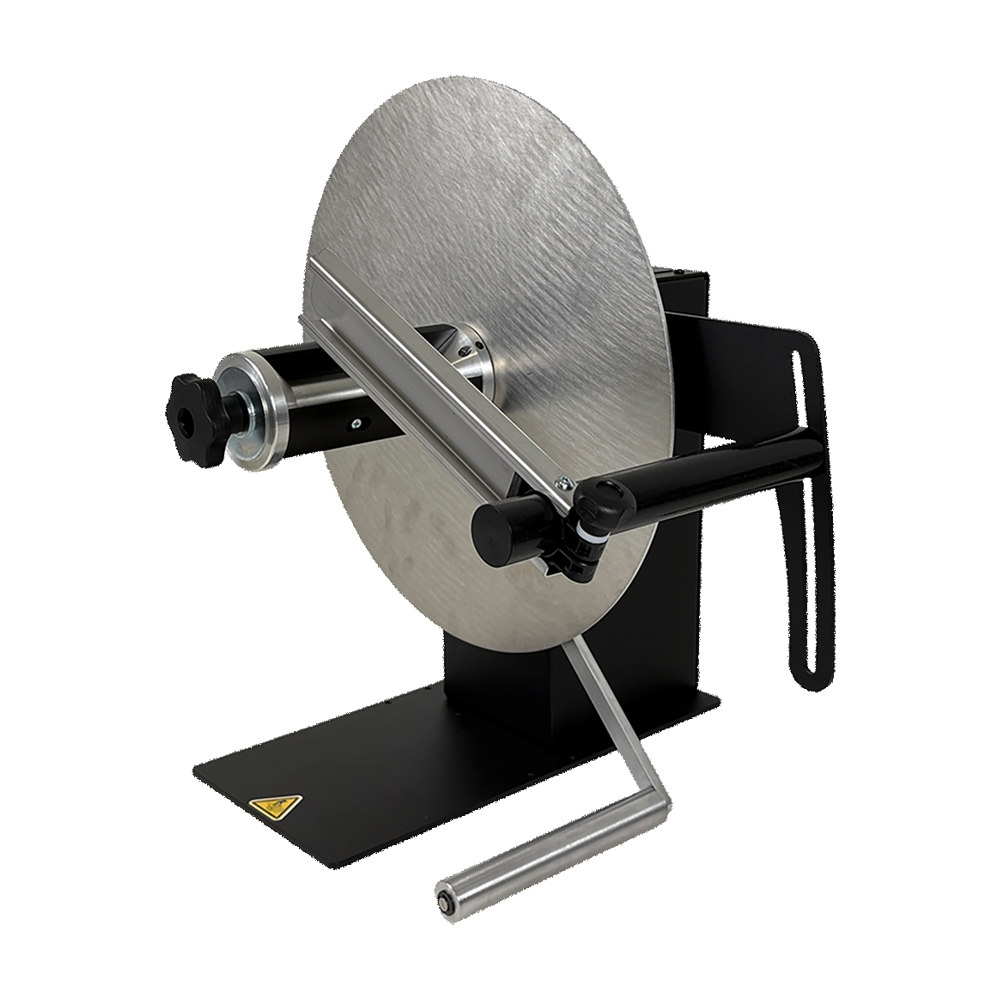

The UNI-CAT-CHUCK-R16 handles labels up to 170 mm wide and comes with a bigger chassis and components to  wind a roll of labels up to a 400 mm diameter.

Rugged, heavy-gauge steel construction allows your UNI-CAT Rewinder to be simply set in place. Special anti-slip feet keep the unit from moving.

Reliable, high quality and maintenance-free, the smart UNI-CAT features a limited warranty of 5-years on parts and labour (1-Year on power supplies), the longest in the industry.

Power supply :
Input: 100-240VAC, 50Hz ; Output: 15VDC-4.33A

P/N: LMR047
