RRC-330-U-ACH

RRC-330-U-ACH

RRC-330-U-ACH

Features

  • Handles labels up to 152mm wide
  • Roll capacity up to 330mm
  • Available for 38, 40, 44, 70, 76 and 100mm cores for the unwind shaft
  • Adjustable core holder (25 to 101mm) for the take-up shaft
  • Speed up to 235cm/sec

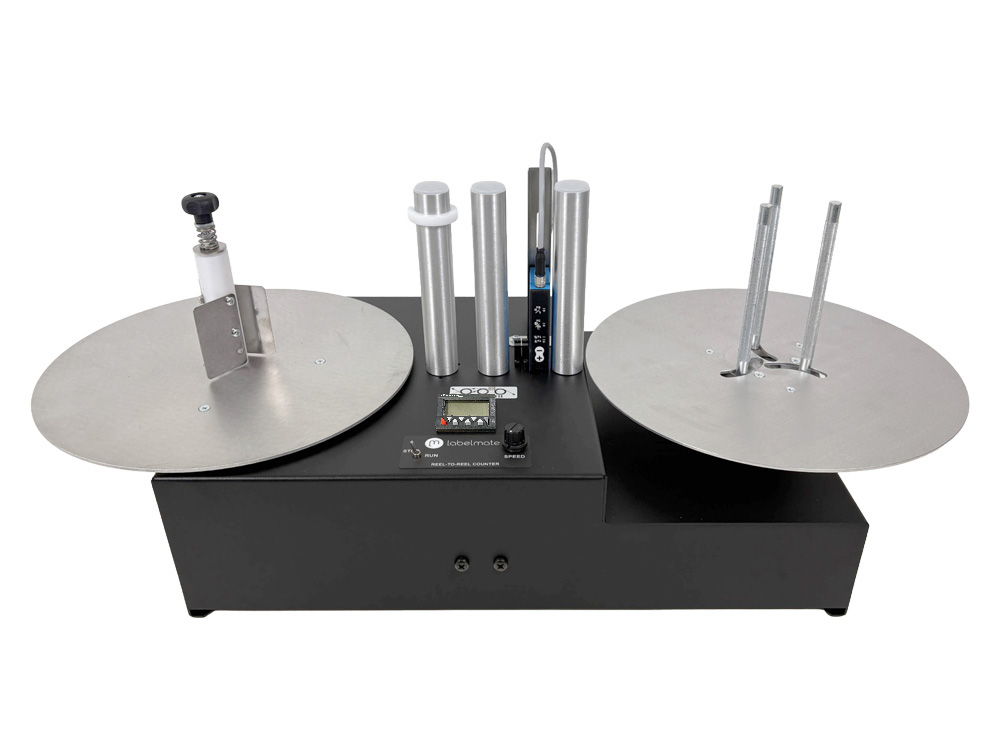

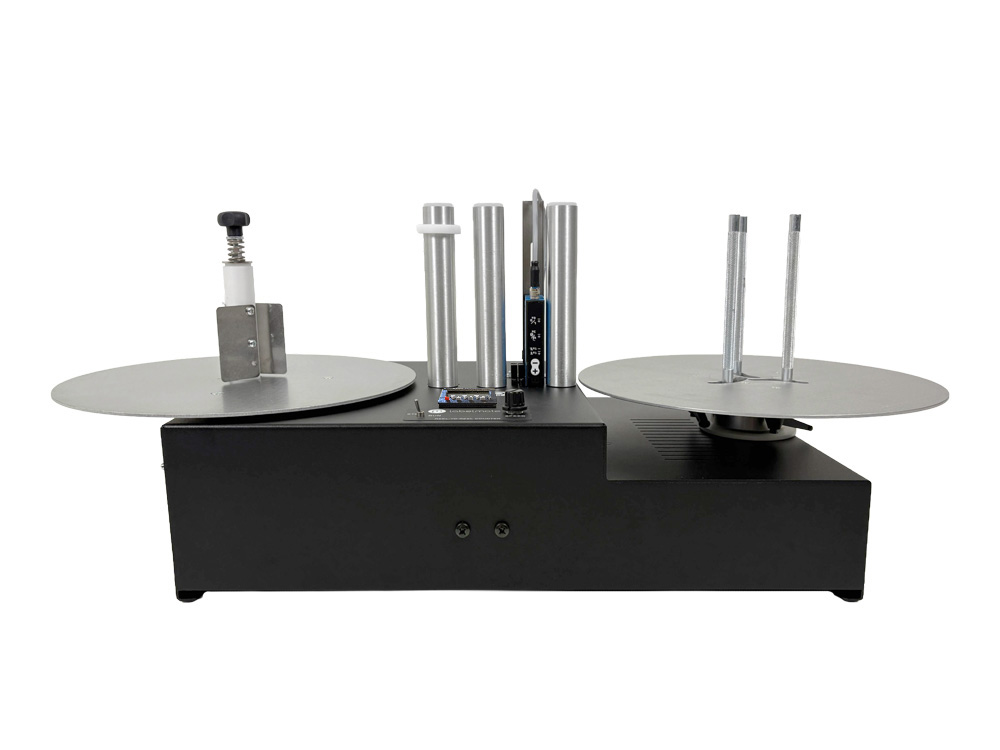

Description

Reel-to-Reel Counting System is a self-contained table-top, using a pre-set counter. The RRC-330-U-ACH accepts roll with a maximum size of 330mm. The unwind shaft is fitted with a “quick-change shaft” that allows to quickly change the core holder diameter (38, 40, 44, 50, 70, 76 and 100mm available). The take-up shaft accepts cores from 25 to 101mm.
The RRC-330-U-ACH uses a ultrasonic fork detector that allows to count any type of labels including transparent or dark labels.

Designed for all-day, every-day use, the RRC-330-U-ACH is backed by Labelmate’s Famous 3-Year Parts and Labor Limited Warranty (1-Year on power supplies), assuring you trouble-free performance.

Power Supply:

220-240VAC, 150VA

P/N: LMC004
