• Ideal for transparent and dark labels
  • Handles labels up to 125mm width
  • 300mm roll diameter capacity
  • High Speed Version (235cm/sec)

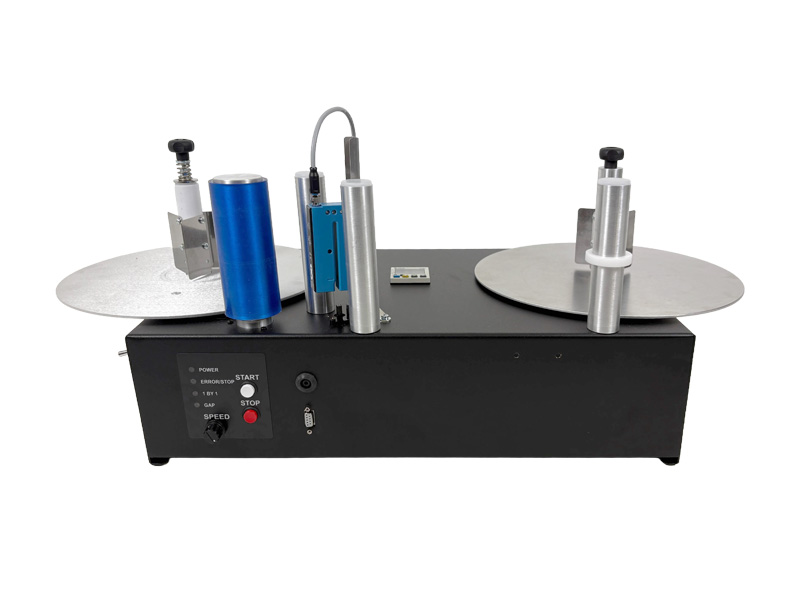

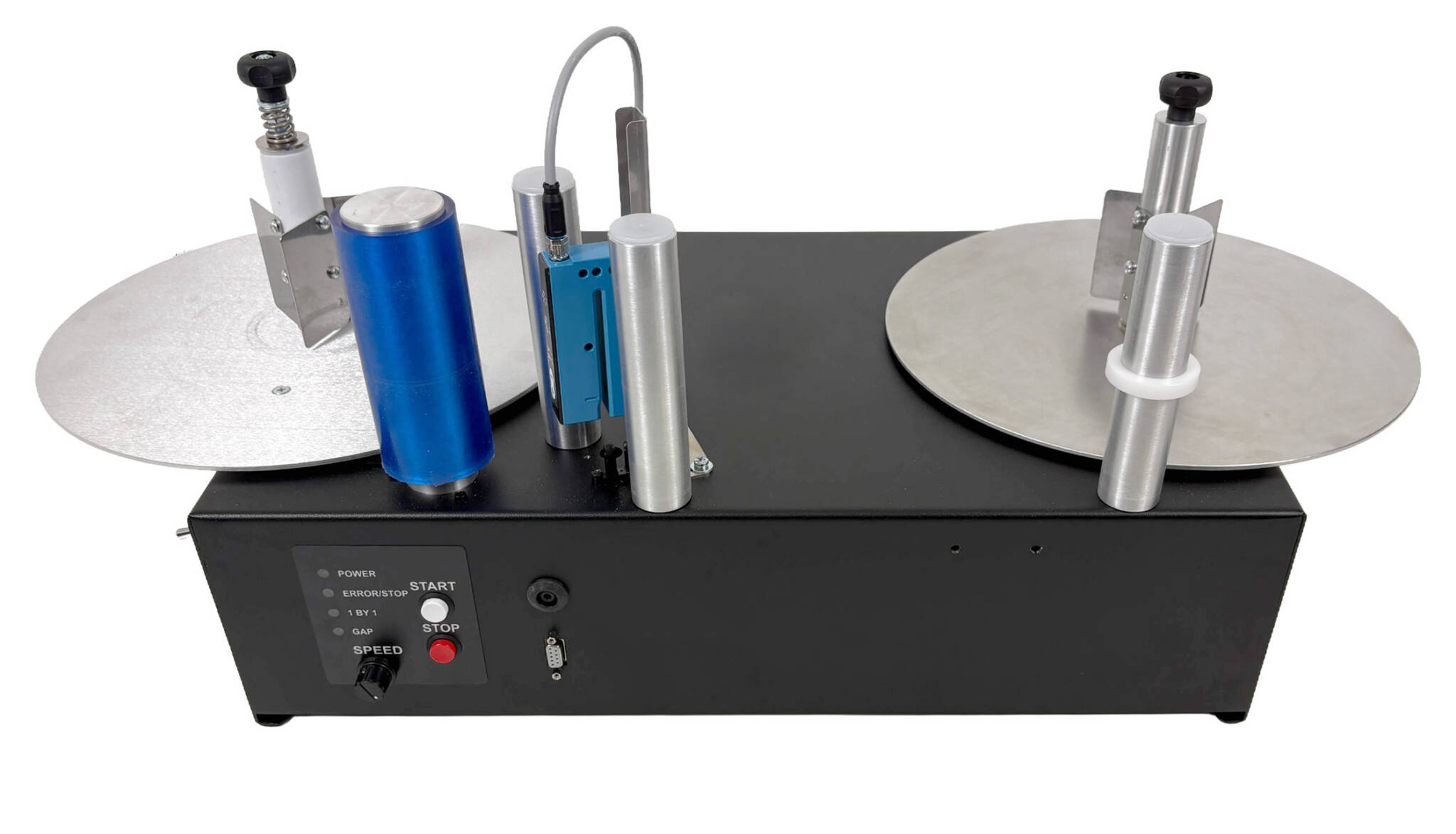

The Reel-to-Reel Label Printer mechanism PM-300-U-HS is the ideal table top platform to economically print or overprint labels using your own inkjet or laser head (not included). The built-in encoder has a resolution of 0,041mm.

This unit uses a utrasonic detector to work on any type of labels, including transparent or dark labels. It detects the difference in thickness between the backing paper and the backing paper plus label.

The PM-300-U-HS will print a 28cm diameter roll (425m) of labels in less than 5 minutes. The model choice is dictated by the performance of the print head being used. Find the Low speed version here.

Designed for all-day, every-day use, the PM-300 Reel-To-Reel Printer Mechanism is backed by LABELMATE’s famous 3-Year Parts and Labour Limited Warranty (1-Year on power supplies), assuring you trouble free performance.


P/N: LMP008
