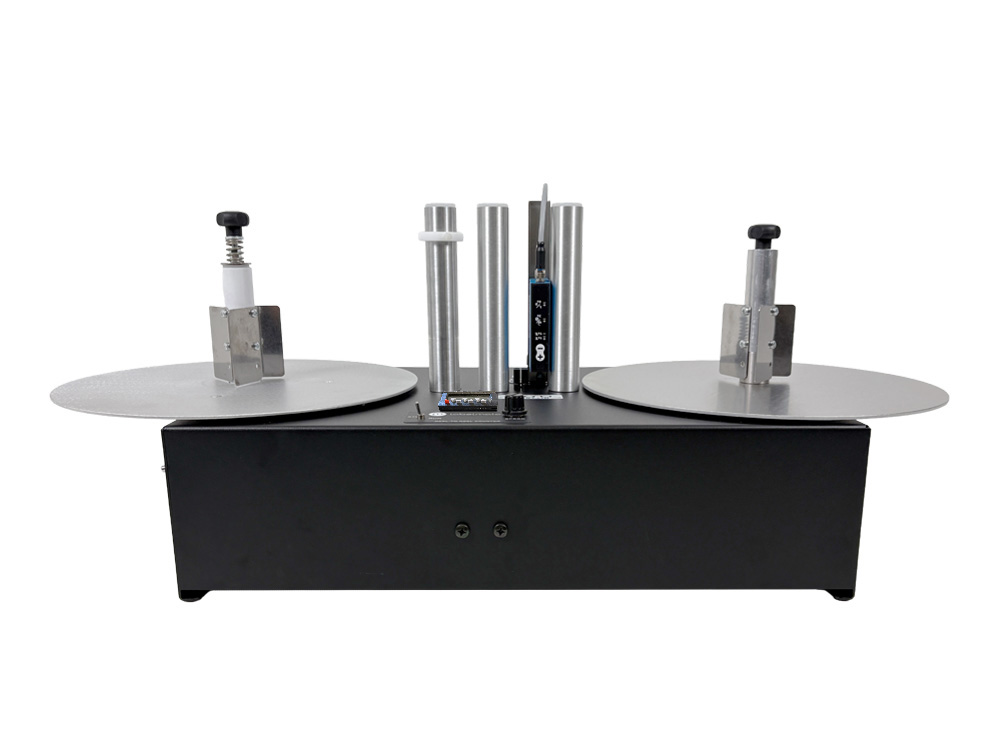

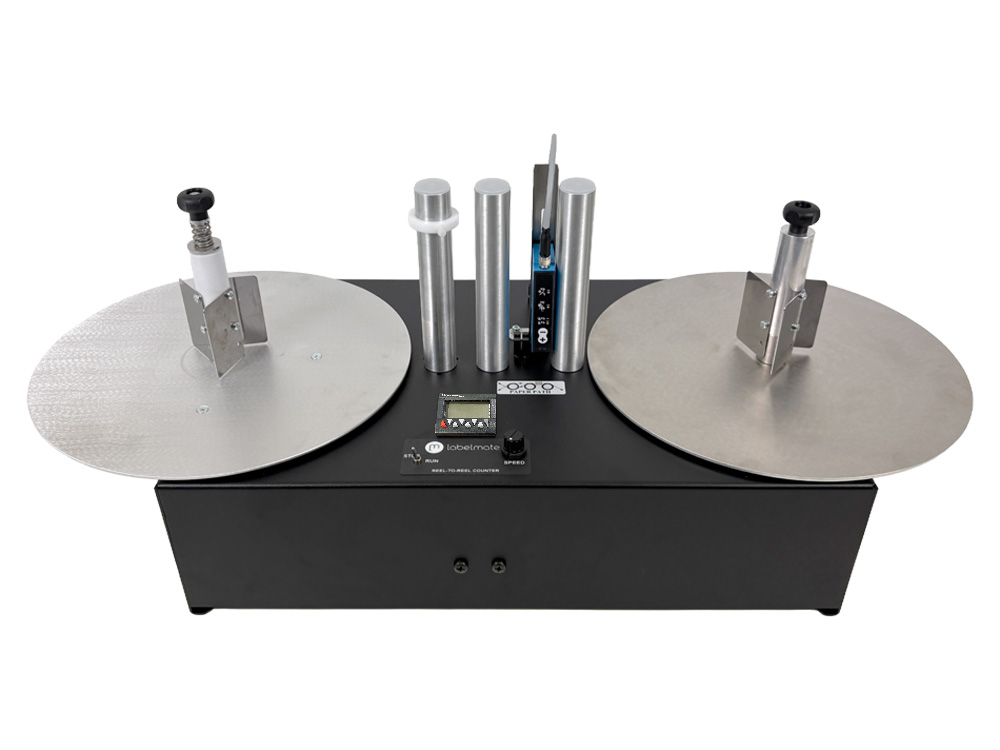

RRC-330-U-STANDARD

RRC-330-U-STANDARD

RRC-330-U-STANDARD

Features

  • Handles labels up to 152mm wide
  • Roll capacity up to 330mm
  • Available for 38, 40, 44, 70, 76 and 100mm cores
  • Speed up to 235cm/sec

Description

Reel-to-Reel Counting System is a self-contained table-top, using a pre-set counter. The RRC-330-U-STANDARD accepts roll with a maximum size of 330mm. The unwind shaft and the take-up shaft are fitted with a “quick-change shaft” that allows to quickly change the core holder diameter (38, 40, 44, 50, 70, 76 and 100mm available).

The RRC-330-U-STANDARD uses a ultrasonic fork detector that allows to count any type of labels including transparent or dark labels.
The optional built-in encoder allows lenght measurement and offers direct read-out in Metric or British & American Units.

Power Supply:

220-240VAC, 150VA

P/N: LMC003
