EPSON COLORWORKS C7500-C8000 + MC-PRO REWINDER
Are you thinking about combining the Epson ColorWorks C7500, C8000-series with one or more MC-PRO’s? With every set-up, we recommend to using the specific Epson rewinder/unwinder alignment plate for the ColorWorks C7500, C8000-series, Â to make positioning the units easier.
Make sure to watch the video below. That video explains clearly how the process takes place. Labelmate combined with an Epson ColorWorks C7500, C8000-series makes an ideal match.
EPSON COLORWORKS C7500-C8000 + UNI-CAT REWINDER/UNWINDER
Are you thinking about combining the Epson ColorWorks C7500, C8000-series with one or more UNI-CAT’s?
When you use 2 UNI-CAT’s, one operates as an unwinder as the other functions as a rewinder. With every set-up, we recommend to use the universal alignment plates that make the outlining of the set-up easier.
Make sure to watch the video below. That video explains clearly how the process takes place. Labelmate combined with an Epson ColorWorks C7500, C8000-series makes an ideal match.
EPSON COLORWORKS C7500-C8000 + TWIN-MATRIX
Do you want to combine the Epson ColorWorks C7500, C8000-series with a TWIN-MATRIX and an UNI-CAT unwinder? The UNI-CAT feeds the label roll into the printer. After printing, the TWIN-MATRIX removes the waste matrix—the excess material around the labels—and rewinds it separately from the finished labels. This leaves the labels cleanly cut and ready to use, making it especially useful for producing borderless, full-bleed labels. The TWIN-MATRIX can be integrated inline with the printer and supports the backfeed process used by colour printers such as the Epson ColorWorks C7500, C8000-series.
For every setup, we recommend using the universal alignment plates to make positioning the units easier.
Watch our video to see how the Epson ColorWorks C7500, C8000-series, UNI-CAT unwinder and TWIN-MATRIX work together.
Combine

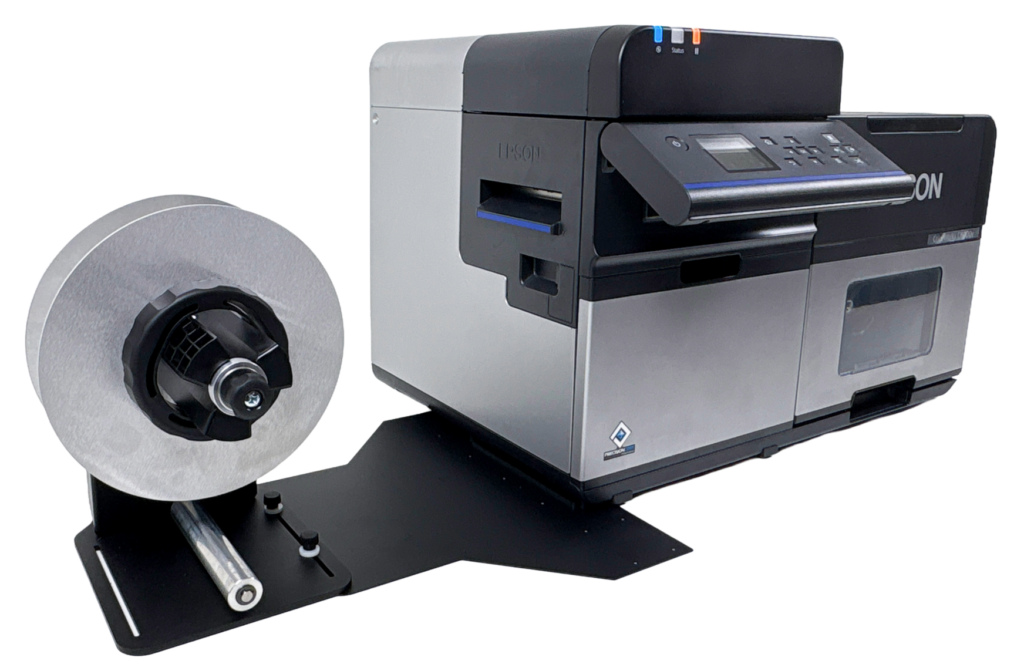

EPSON COLORWORKS C7500-C8000 + MC-PRO REWINDER
The Epson ColorWorks C7500-C8000-series can be paired with one or two MC-PRO units. When an MC-PRO is positioned before the printer, it functions as an unwinder, feeding labels into the printer. When positioned after the printer, it functions as a rewinder, collecting the printed labels. With two MC-PRO units, one can unwind while the other rewinds, creating a complete print-and-rewind setup. For every setup, we recommend using the specific Epson C7500-C8000 alignment plate to make positioning the units easier. Watch our video to discover how the Epson ColorWorks C7500-C8000-series works in harmony with Labelmate’s MC-PRO unwinder and rewinder.

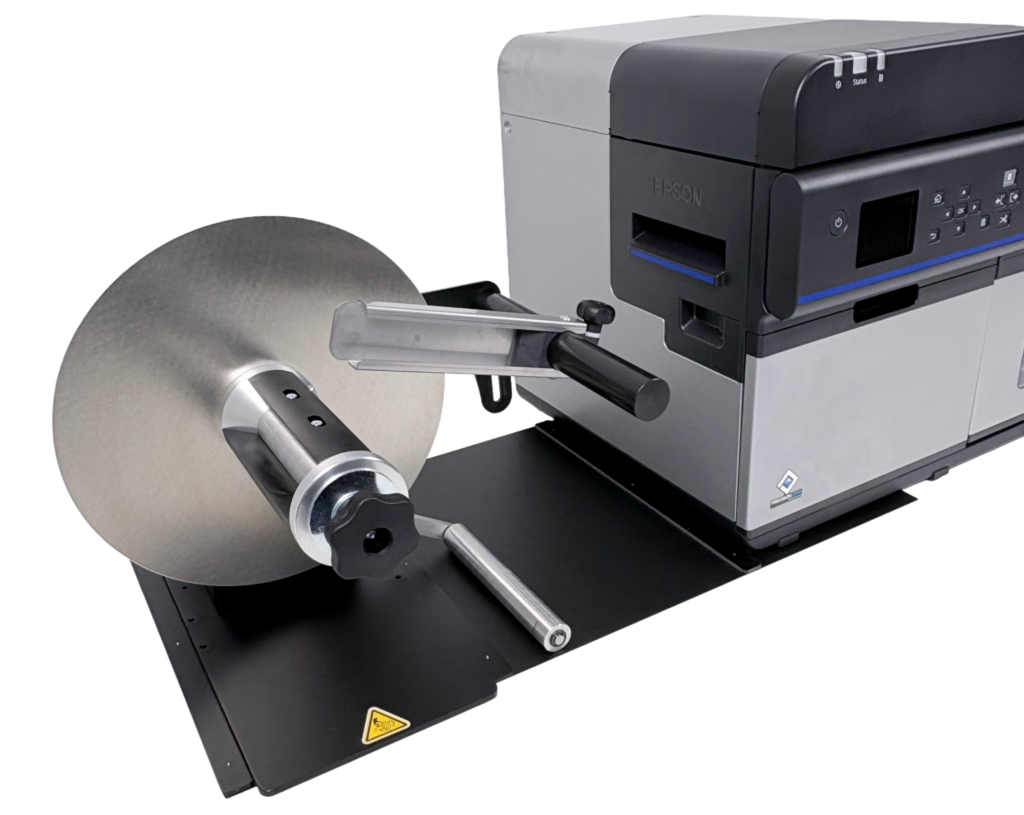

EPSON COLORWORKS C7500-C8000 + UNI-CAT REWINDER
The Epson ColorWorks C7500-C8000 is joined very easily with the UNI-CAT rewinder, when placed in front of the label printer. Outlining is child's play when using the universal alignment plates. The UNI-CAT will roll up label rolls up to 300mm, according to the speeds of your printer. The new, tightly rolled label rolls are immediately ready to use.

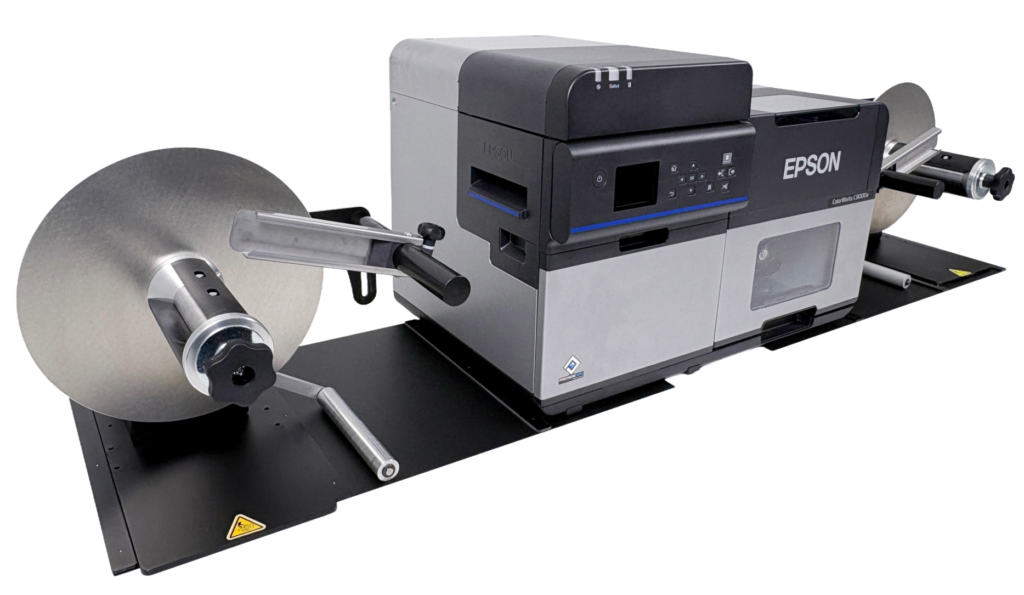

EPSON COLORWORKS C7500-C8000 + UNI-CAT UNWINDER + UNI-CAT REWINDER
A combination between the Epson ColorWorks-C7500-C8000 and two UNI-CAT's provides one UNI-CAT to function as unwinder, whilst the other one operates as label rewinder. With this setup, your labels will be ready to use in no time. It is advisable to use two universal alignment plates for this setting.

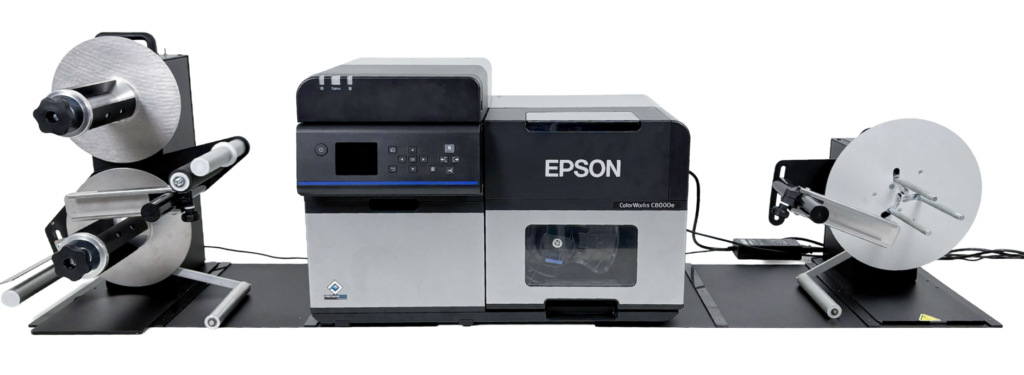

EPSON COLORWORKS C7500-C8000 + UNI-CAT unwinder + TWIN MATRIX
A TWIN-MATRIX can be placed in front of an Epson CW-C7500-C8000 printer, while a UNI-CAT is situated behind the printer. That way, you enlarge the capacity, which results in an ideal match for the printer's high printing speed. The waste material will be collected in line with your printer and will be rolled up separately. That results in the fact that your labels will be immediately ready to use after printing. This configuration supports the use of two optional base plates.

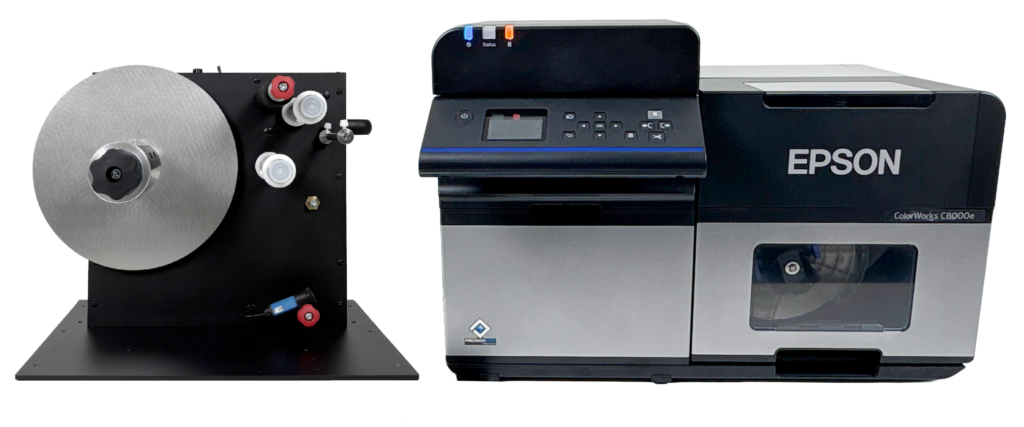

EPSON COLORWORKS C7500-C8000 + ZCAT ZERO-TENSION-LOOP-REWINDER
Is it necessary to achieve very tight label rolls? Or is your printer extremely sensitive to the tensions due to the label track? In that case, you can profit from our ZERO TENSION LOOP REWINDER ZCAT. The optic sensor maintains an optimal distance between the printer and the rewinder at all times. The extra rubber roller provides elevated tension that results in excellent label rolls.
Compare
| P/N | Model | Description | Max label width | Max roll diam | Max weight |
|---|---|---|---|---|---|
| LMR042 | UNI-CAT-STANDARD | Standard for 76mm cores (38/40/44/50/70/100mm available). | 155 mm | 300 mm | 8 KG |
| LMR043 | UNI-CAT-ACH | Adjustable Core Holder for using any core diameter between 25 & 101 mm. | 155 mm | 280 mm | 7 KG |
| LMR044 | UNI-CAT-CHUCK | Easy-Loading Quick- Chuck for 76mm cores (38/40/44/70mm available). | 170 mm | 300 mm | 10 KG |
| LMR045 | UNI-CAT-10-INCHES | Standard for 76mm cores (38/40/44/50/70mm available). | 225 mm | 300 mm | 10 KG |
| LMR044/ LMX484 | UNI-CAT-CHUCK-220 | Easy-Loading Quick-Chuck for 76mm cores. | 220 mm | 300 mm | 10 KG |
| LMR049 / LMX484 | UNI-CAT-XL-220 | Easy-Loading Quick-Chuck for 76mm cores and 400 mm rolls. | 220 mm | 400 mm | 14 KG |
| LMR057 | TWIN-MATRIX-6-R/L | Right to Left paper path, for colour printers (EPSON, TSC, Primera, OKI,...). | 170 mm | 220 mm | 2 x 5 KG |
| LMR059 | TWIN-MATRIX-8-R/L | Right to Left paper path, for colour printers (EPSON, TSC, Primera, OKI,...). | 220 mm | 220 mm | 2 x 5 KG |
| LMX579 | UNIVERSAL ALIGNMENT PLATE | ||||
| LMR066 | MC-PRO-CHUCK | Standard for rewinding on cores 76mm. | 110 mm | ||
| LMR067 | MC-PRO-ACH | Adjustable core holder for using any core diameter between 25 & 101 mm. | 110 mm | ||
| LMX641 | Alignment plate for Epson CW-C7500-series / CW-C8000-series. |
