Accessories
ZEBRA ZT111 + MC-PRO
The Zebra ZT111 can be paired with an MC-PRO unit. When an MC-PRO is positioned after the printer, it functions as a rewinder, collecting the printed labels.
For every setup, we recommend using the specific Zebra ZT111 alignment plate to make positioning the units easier.
ZEBRA ZT111 + UNI-CAT
The Zebra ZT111 can be paired with one or two UNI-CAT’s.
When you use 2 UNI-CAT’s, one operates as an unwinder as the other functions as a rewinder. With every set-up, we recommend to use the universal alignment plates that make the outlining of the set-up easier.
Combine

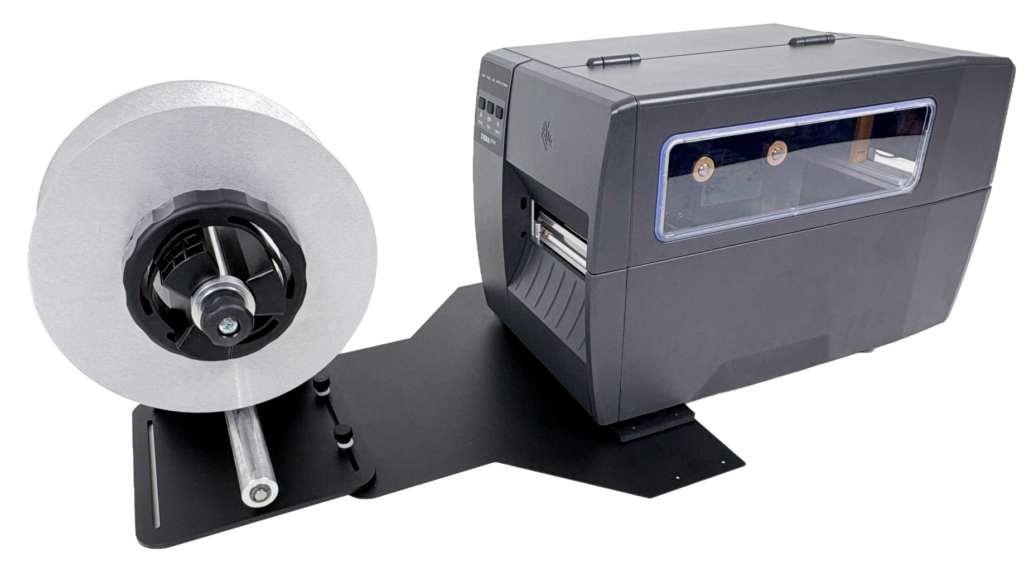

ZEBRA ZT111 + MC-PRO REWINDER
The Zebra ZT111 can be combined with an MC-PRO unit and a specific Zebra ZT111/ZT231 alignment plate. When an MC-PRO is positioned after the printer, it functions as a rewinder, collecting the printed labels. For every setup, we recommend using the specific Zebra ZT111/ZT231 alignment plate to make positioning the units easier.
ZEBRA ZT111 + UNI-CAT REWINDER
The Zebra ZT111 can be linked to one or two UNI-CAT’s. When you use 1 UNI-CAT, it's operating as a rewinder. With every set-up, we recommend to use the universal alignment plates that make the outlining of the set-up easier.

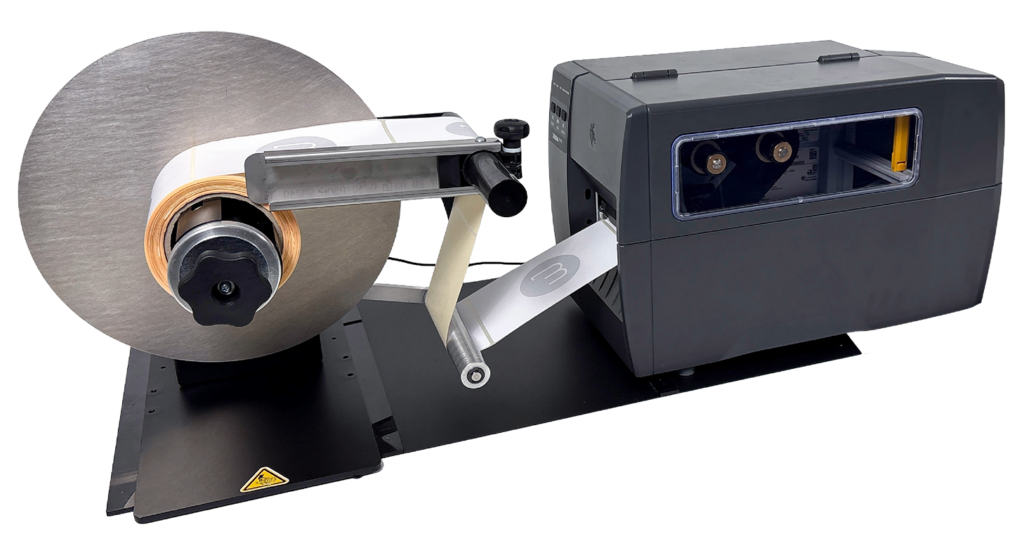

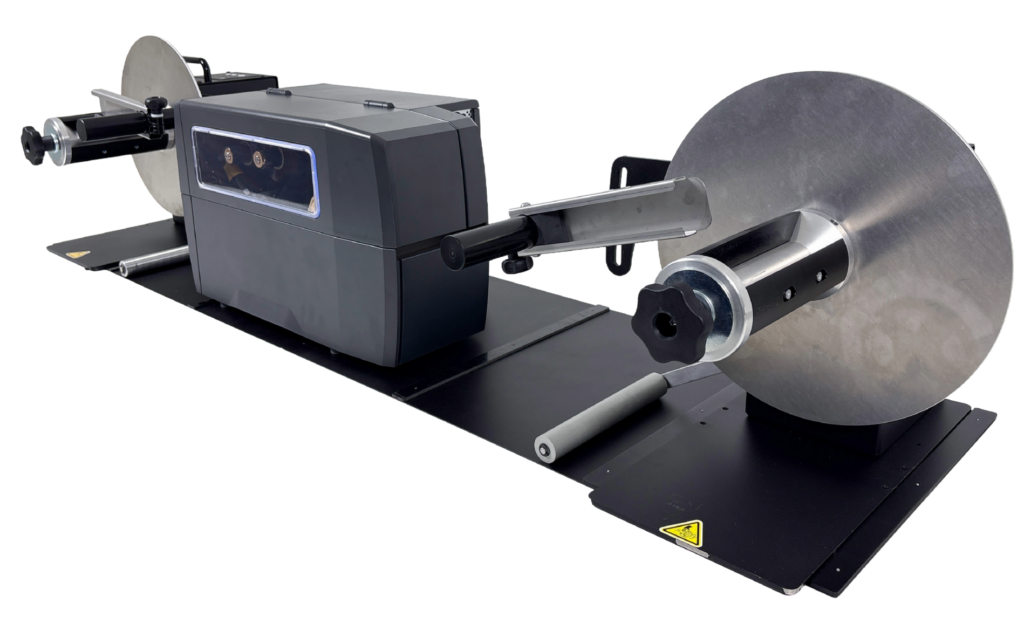

ZEBRA ZT111 + UNI-CAT REWINDER/UNWINDER
The Zebra ZT111 can be linked to two UNI-CAT’s. When you use 2 UNI-CAT’s, one operates as an unwinder as the other functions as a rewinder. With every set-up, we recommend to use the universal alignment plates that make the outlining of the set-up easier. Make sure to watch our video and discover how the Zebra ZT111 works in harmony with Labelmate’s UNI-CAT unwinder/rewinder.
Compare
| P/N | Model | Description | Max label width | Max roll diam | Max weight |
|---|---|---|---|---|---|
| LMR042 | UNI-CAT-STANDARD | Standard for 76 mm cores (38/40/44/50/100 mm available). | 155 mm | 300 mm | 8 KG |
| LMR043 | UNI-CAT-ACH | Adjustable Core Holder for using any core diameter between 25 & 101 mm. | 155 mm | 280 mm | 7 KG |
| LMR044 | UNI-CAT-CHUCK | Easy-Loading Quick-Chuck for 76 mm cores (38/40/44 mm available). | 150 mm | 300 mm | 10 KG |
| LMX579 | ALIGNMENT PLATE | Universal. | |||
| LMR066 | MC-PRO-CHUCK | Standard for rewinding on cores 76 mm. | 110 mm | ||
| LMR067 | MC-PRO-ACH | Adjustable core holder for using any core diameter between 25 & 101 mm. | 110 mm | ||
| LMX652 | ALIGNMENT PLATE | For Zebra ZT111/ZT231. |
