TOSHIBA BA420T + MC-PRO
The Toshiba BA420T can be paired with an MC-PRO unit. When an MC-PRO is positioned after the printer, it functions as a rewinder, collecting the printed labels.
For every setup, we recommend using the specific Toshiba BA420T alignment plate to make positioning the units easier.
Watch our video to discover how the Toshiba BA420T works in harmony with Labelmate’s MC-PRO rewinder.
TOSHIBA BA420T + UNI-CAT
Are you thinking about combining the Toshiba BA420T with one or more UNI-CAT’s?
When you use 2 UNI-CAT’s, one operates as an unwinder as the other functions as a rewinder. With every set-up, we recommend to use the universal alignment plates that make the outlining of the set-up easier.
Make sure to watch the video below. That video explains clearly how the process takes place. Labelmate combined with an Toshiba BA420T makes an ideal match.
Combine

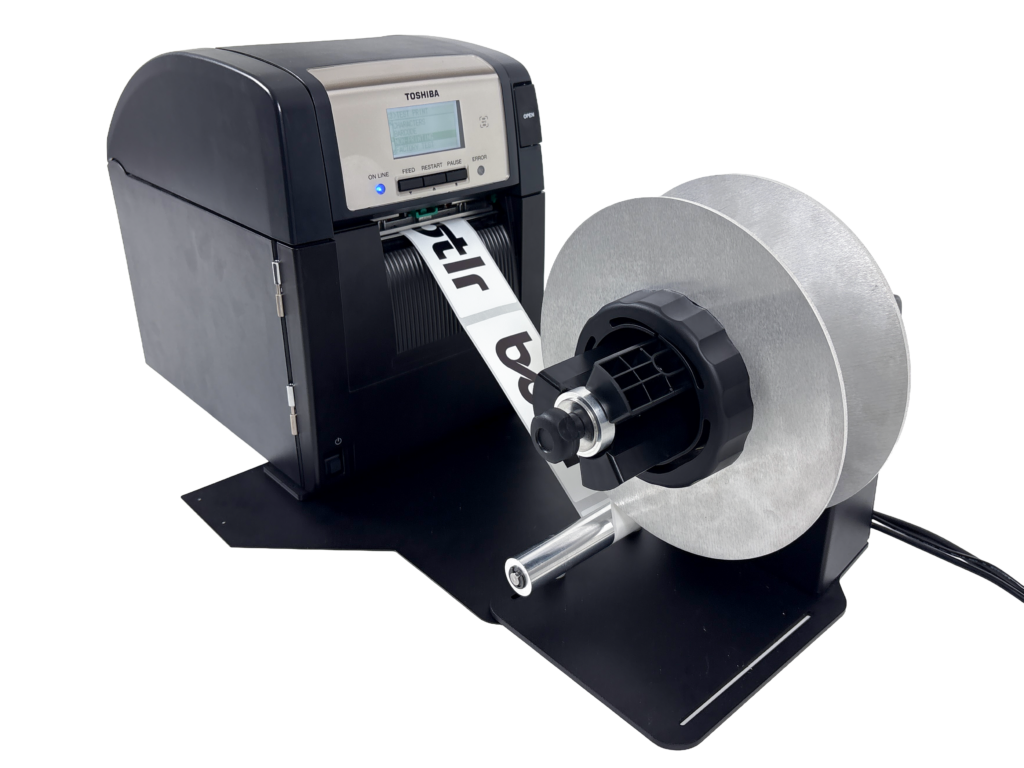

TOSHIBA BA420T + MC-PRO REWINDER
The Toshiba BA420T is the ideal printers for on-demand digital colour labels, double the autonomy of your print configuration. The printer can be paired with one or two MC-PRO units. When an MC-PRO is positioned before the printer, it functions as an unwinder, feeding labels into the printer. When positioned after the printer, it functions as a rewinder, collecting the printed labels. With two MC-PRO units, one can unwind while the other rewinds, creating a complete print-and-rewind setup. For every setup, we recommend using the specific Toshiba BA420T alignment plate to make positioning the units easier.

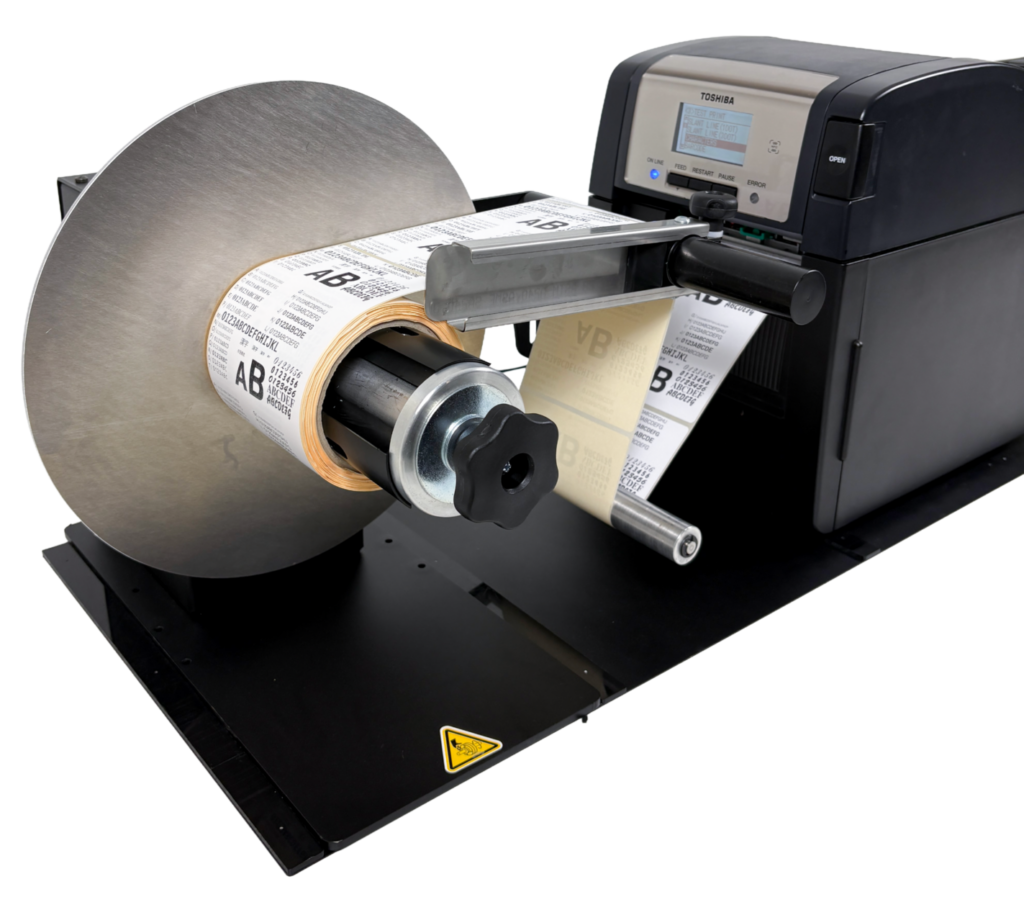

TOSHIBA BA420T + UNI-CAT REWINDER
You can easily combine the Toshiba BA420T with a UNI-CAT rewinder when placed before the printer. An optional universal alignment plate makes outlining very easy. The UNI-CAT will rewind rolls up to 300mm, according to the speeds of your colour printer. The new, tightly rolled label rolls are immediately ready to be used.

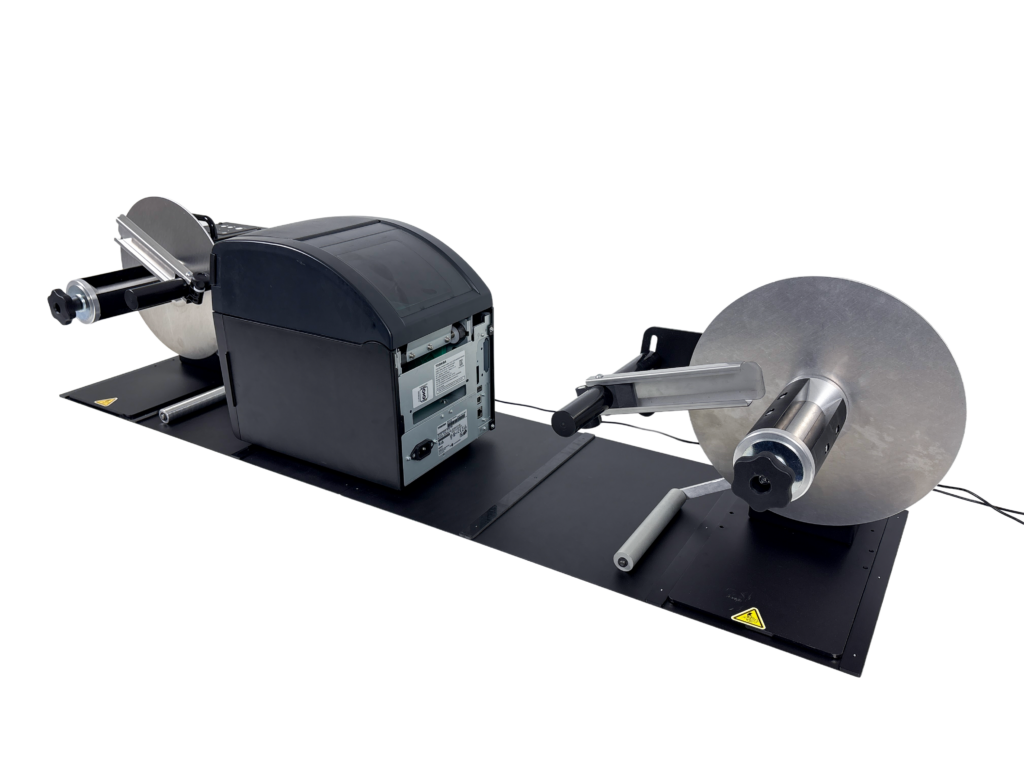

TOSHIBA BA420T + UNI-CAT REWINDER + UNWINDER
When you use two UNI-CAT's, the one before the printer will unroll, while the one behind the printer will roll up the final labels. With this composition, your compactly rolled label rolls will be immediately ready to use. The optional alignment plates make outlining very easy.
Compare
| P/N | Model | Description | Max label width | Max roll diam | Max weight |
|---|---|---|---|---|---|
| LMR042 | UNI-CAT-STANDARD | Standard for 76mm cores (38/40/44/50/70/100mm available). | 155 mm | 300 mm | 8 KG |
| LMR043 | UNI-CAT-ACH | Adjustable Core Holder for using any core diameter between 25 & 101 mm. | 155 mm | 280 mm | 7 KG |
| LMR044 | UNI-CAT-CHUCK | Easy-Loading Quick-Chuck for 76mm cores (38/40/44/70mm available). | 170 mm | 300 mm | 10 KG |
| LMR045 | UNI-CAT-10-INCHES | Standard for 76mm cores (38/40/44/50/70mm available). | 225 mm | 300 mm | 10 KG |
| LMX579 | ALIGNMENT PLATE | Universal. | |||
| LMR066 | MC-PRO-CHUCK | Standard for rewinding on cores 76mm. | 110 mm | ||
| LMR067 | MC-PRO-ACH | Adjustable core holder for using any core diameter between 25 & 101 mm. | 110 mm | ||
| LMX650 | ALIGNMENT PLATE | For Toshiba BA420T. |
