CAT-3-STANDARD

CAT-3-STANDARD

CAT-3-STANDARD

Features

  • Handles labels up to 155mm wide
  • Roll diameter capacity up to 300mm
  • Available for 38, 40, 44, 70, 76 and 100mm cores
  • Speed up to 125cm/sec

Description

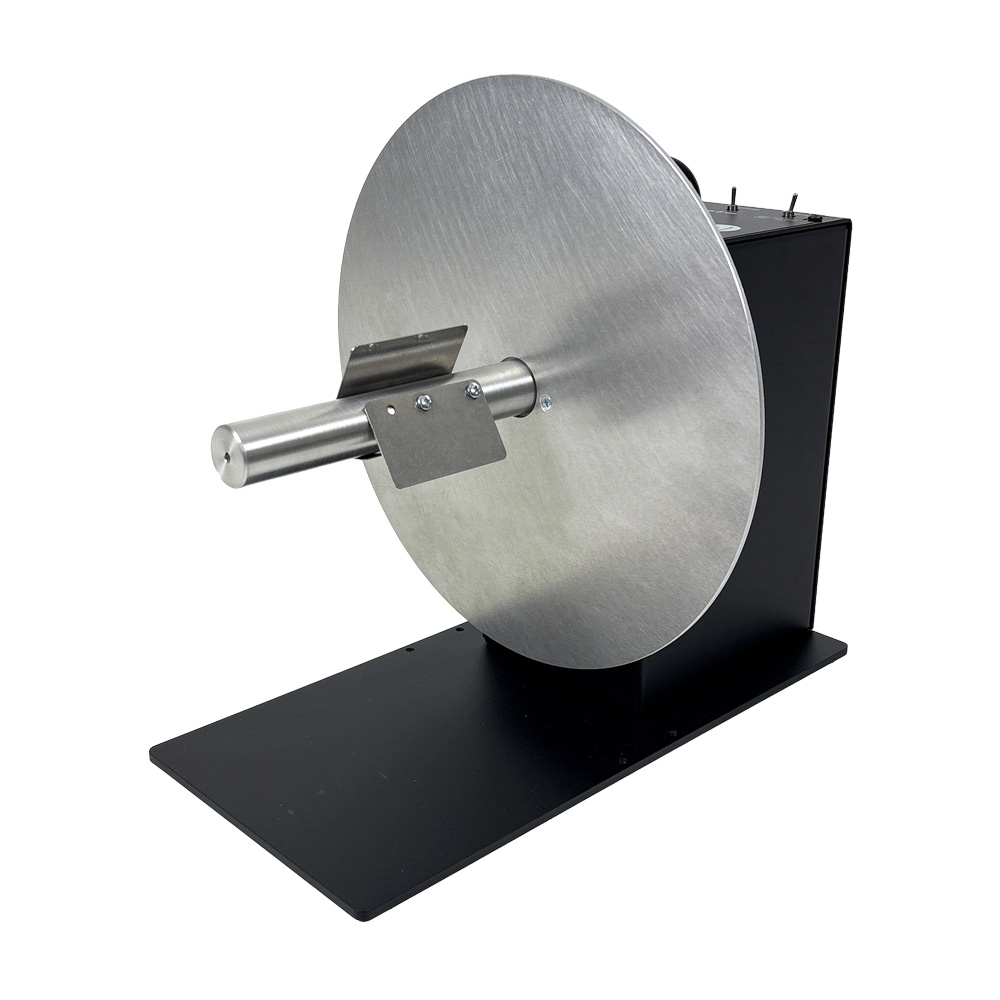

The CAT-3-STANDARD handles labels up to 155 mm wide and will wind a roll of labels up to a 300 mm diameter. Torque and Direction are fully controllable from the Control Panel. Dual torque ranges provide plenty of power for use with a LABELMATE Slitter, too.

Rugged, heavy-gauge steel construction allows your CAT-3 Rewinder to be simply set in place. Special anti-slip feet keep the unit from moving.

Reliable, high quality and maintenance-free, the Heavy-Duty CAT Label Rewinder features a 5-YEAR PARTS and LABOUR LIMITED WARRANTY (1-Year on power supplies), the longest in the industry.

  • Available with a Tension Arm



Power supply :
Input: 230VAC – 50Hz.
Output: 15VDC – 4.33A

P/N: LMR004

LMR010 (Tension Arm Version)



Videos

HEAVY-DUTY-CAT-3-REWINDERS

Attached documents

Options

APG-CAT

APG-CAT

Adjustable Paper Guide: guides the outer edge of the labels to ensure an even roll edge.
